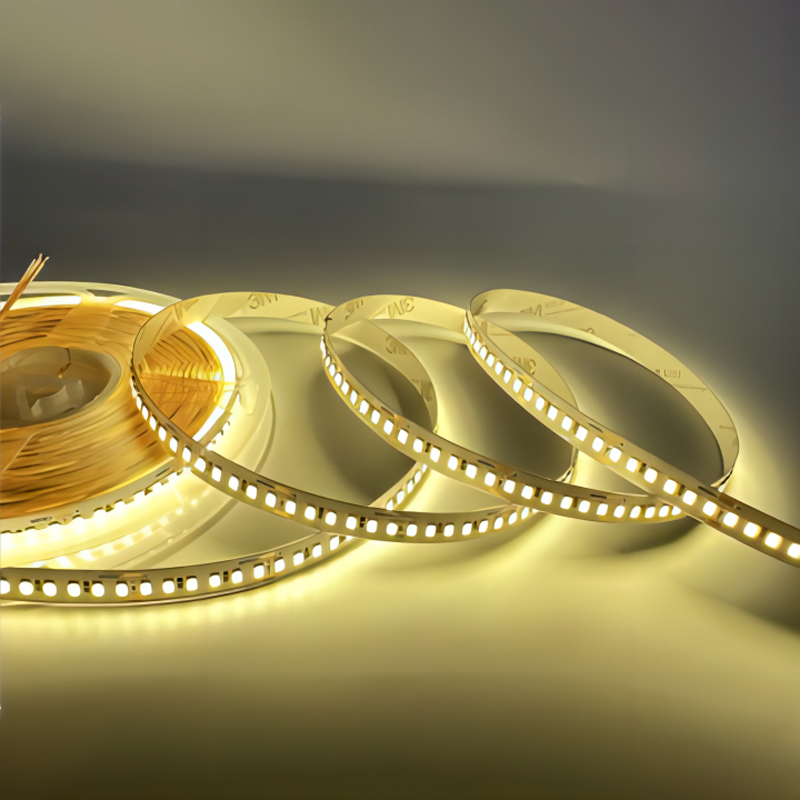

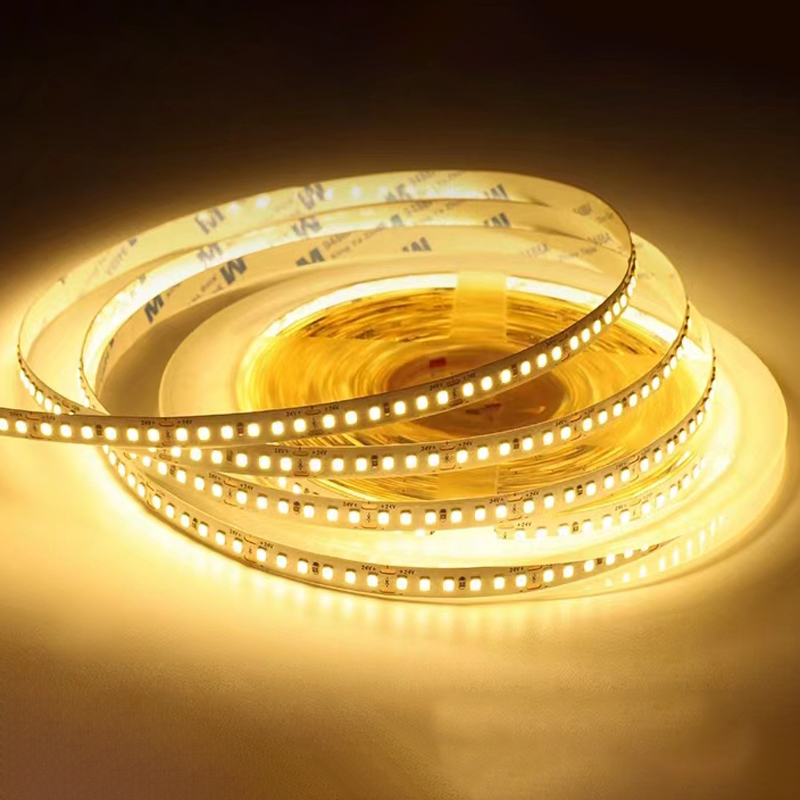

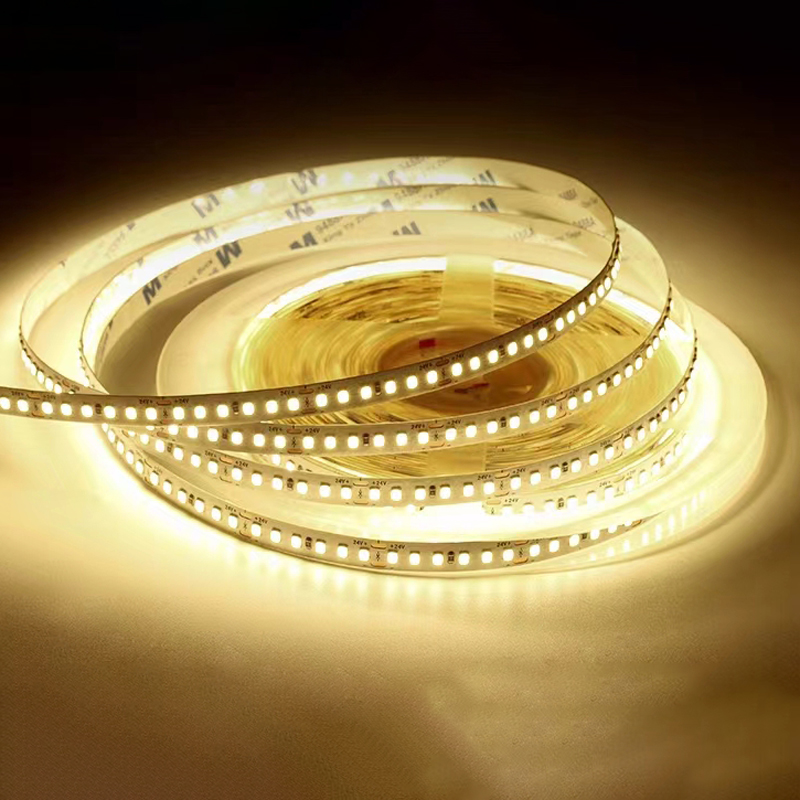

180 LED Shadow-Free Low Voltage Strip
Product Description
1.Strip Specifications: The strip contains 180 LEDs, and specific dimensions may vary by product.
2.Chip and Brightness: High-quality LED chips are used, offering high brightness. For instance, the lumen output per LED may range between 18-20.
3.Color Temperature Options: Various color temperatures are available, such as cool white (6500K), natural white (4000K), warm white (3000K), etc., to meet the needs of different scenarios and create diverse atmospheres.
4.Heat Dissipation Performance: Good heat dissipation is achieved, possibly through special designs like flip-chip LEDs directly attached to the strip's substrate with tin paste, shortening the heat dissipation path.
5.Customizability: Some parameters may be customizable, such as substrate copper layer thickness and single group cutting length, to adapt to different installation and usage requirements.

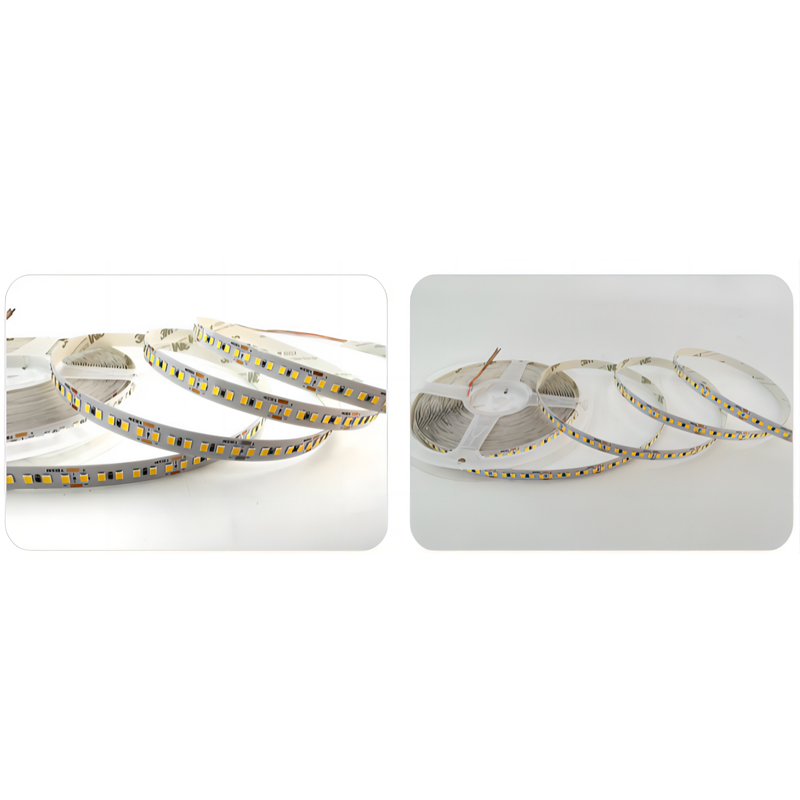

6.Easy Installation: The strip is flexible, can be bent freely, and has a double-sided adhesive backing for direct and convenient adhesion during installation.
7.No or Low Voltage Drop: Effectively ensures uniform brightness within a certain length of the strip, reducing the difference in brightness between the beginning and end.
8.Long Lifespan: The effective lifespan usually reaches about 50,000 hours.
9.High Color Rendering Index: The Color Rendering Index may reach as high as 80 or 90, enabling a high degree of color fidelity and making colors appear bright and vibrant.
10.Reliable Quality: Made from high-quality materials, such as double-sided thickened electroplated boards, offering good flexibility, bend resistance, and fold resistance. Equipped with genuine 3M adhesive with strong peel-off force for lasting adhesion.
11.Smart Control (for some products): Supports smart adjustments compatible with platforms like Xiaomi, allowing for convenient control of light color temperature and brightness via mobile apps or voice commands, achieving diversified lighting effects.
12.Wide Application Scenarios: Suitable for decoration and lighting of buildings, bridges, roads, indoor decorations (such as ceilings, furniture, homes), hotels, public transportation, advertising signs, logos, etc. Also suitable for groove embedded installation, enhancing the overall aesthetics of the decorated surface.
In practical use, attention should be paid to the installation and usage matters of the strip. For example, it should be paired with a corresponding power transformer like 12V or 24V, and not connected directly to a 220V power source; when determining the wiring scheme, consider the power consumption of the connecting wires, it is recommended that the total power of the lamp strip does not exceed 80% of the rated power of the DC power supply, and parallel wiring is preferred, etc. Meanwhile, choose products of reliable quality when purchasing to ensure effect and safety.
Product parameters
Product Name | 180 LED Shadow-Free Low Voltage Strip |
Product Model | 2835-10mm-180P |
Color Temperature | White Light/Warm Light/Neutral Light |
Power | 16W/meter |
Maximum Voltage Drop-Free Length | 10 meters voltage drop-free |
Voltage | 24V |
Lumens | 24-26 Lumens per LED |
Waterproof Rating | IP20 |
PCB Thickness | 18/35Copper Foil - High-Temperature Board |
Number of LEDs | 180 LEDs |
Color Rendering Index (CRI) | greater than 80 |
Chip Brand | Sanan Chips |
