New Partition Lampshade Outdoor Waterproof LED Wick Street Lamp Head
Product Features

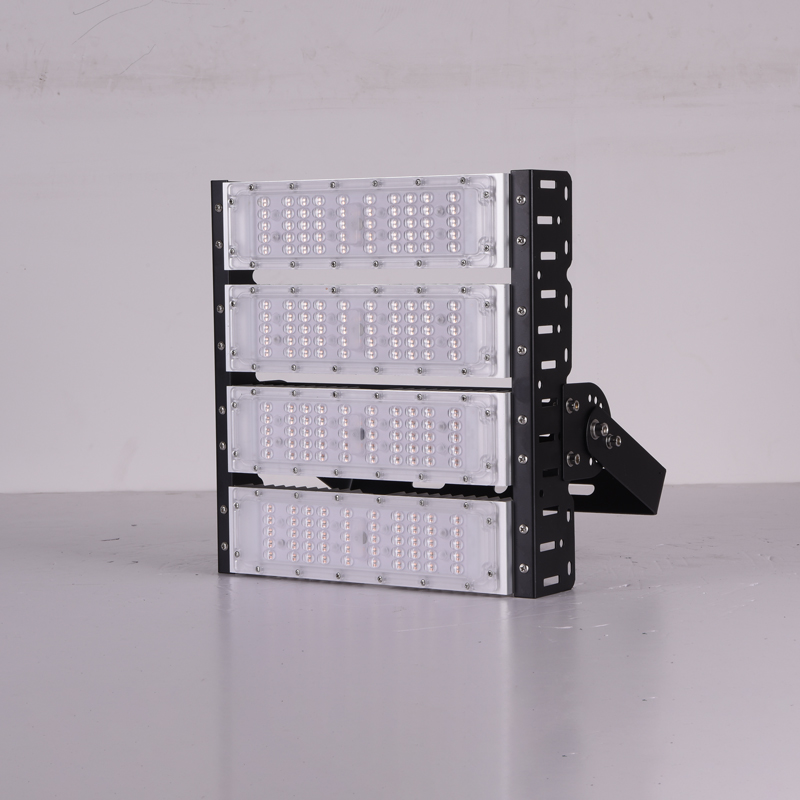

Highlight LED headlight beads
The matrix arrangement of the LED chip ensures the uniformity of light distribution and effectively avoids the generation of dark areas. This design not only improves the lighting effect of the lamps, but also makes the light more natural and close to the natural light source.
Large wide Angle PC lens
Equipped with a 90° Angle PC lens with extremely high light transmittance, can make the light soft and uniform distribution, effectively avoid glare. This optical design is suitable for scenes that require extensive lighting and high-quality light output.
Rain, water and lightning proof outdoor
Multiple containment measures, including sealed waterproof rubber rings, waterproof wicks and preset drainage tanks, ensure that the LED module floodlights can work stably in extreme weather conditions, even in storms and storms without worrying about rain infiltration. In addition, the lightning protection design improves its safety when used outdoors.

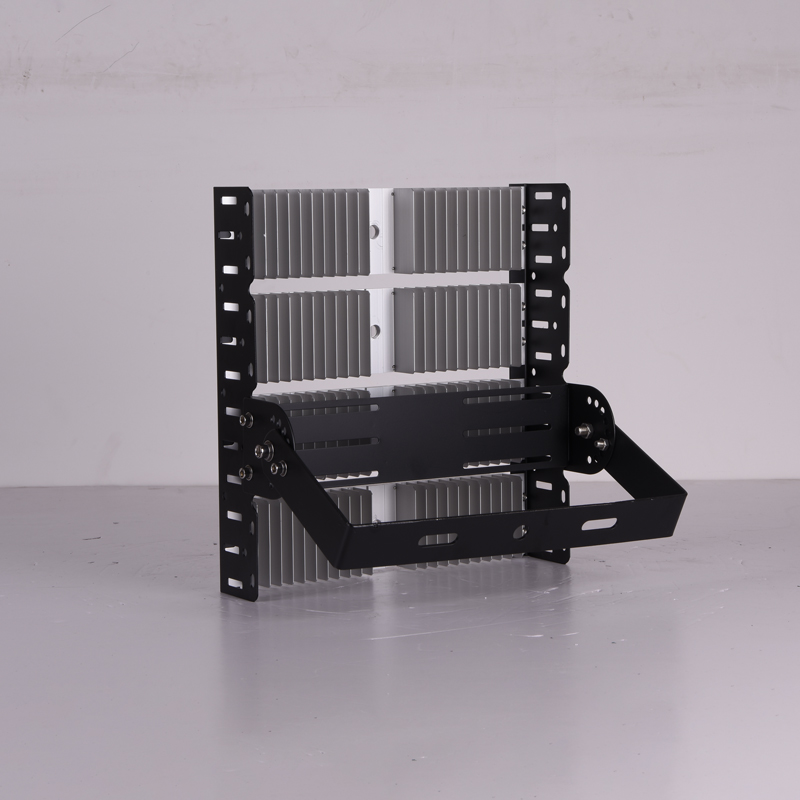

Aluminum radiator
The use of high-quality aluminum, combined with air convection heat dissipation design and high temperature heat dissipation block, greatly improves the heat dissipation efficiency of LED module floodlight, prolonging the service life of LED light and ensuring its stable operation in high temperature environment.
180° adjustable support
The 180° adjustable stand design gives this lamp extreme flexibility, and the user can adjust the Angle of illumination according to the actual needs. This is particularly important in situations where the direction of lighting needs to be precisely controlled, such as sports event lighting and architectural highlight lighting.

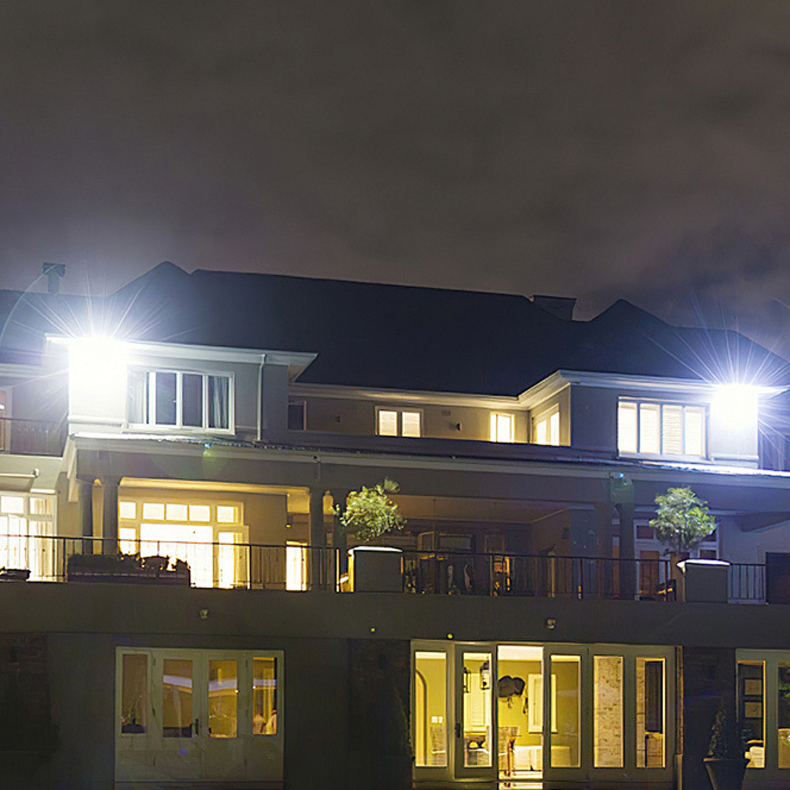

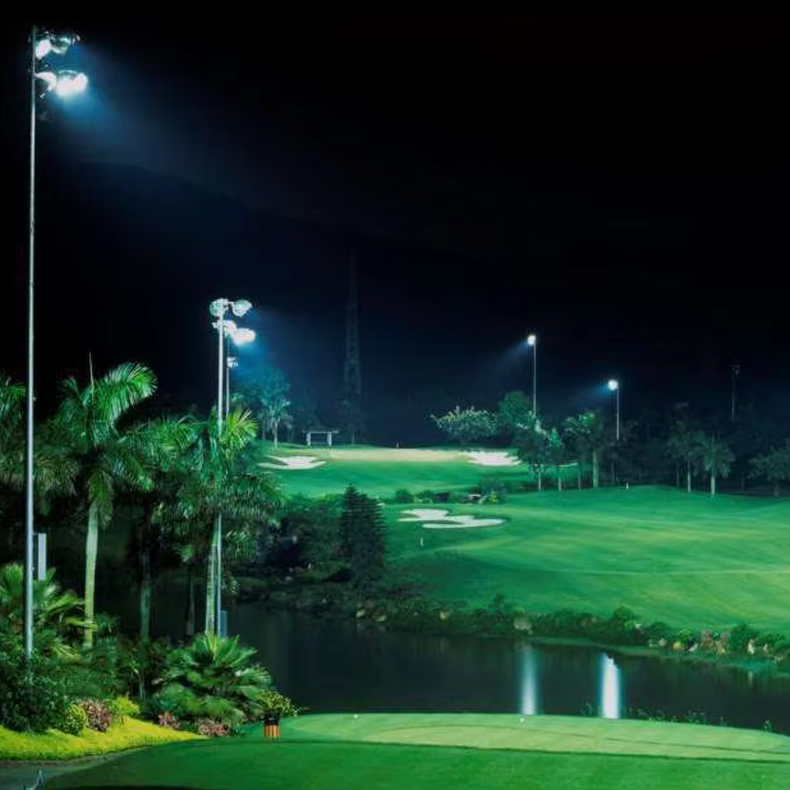

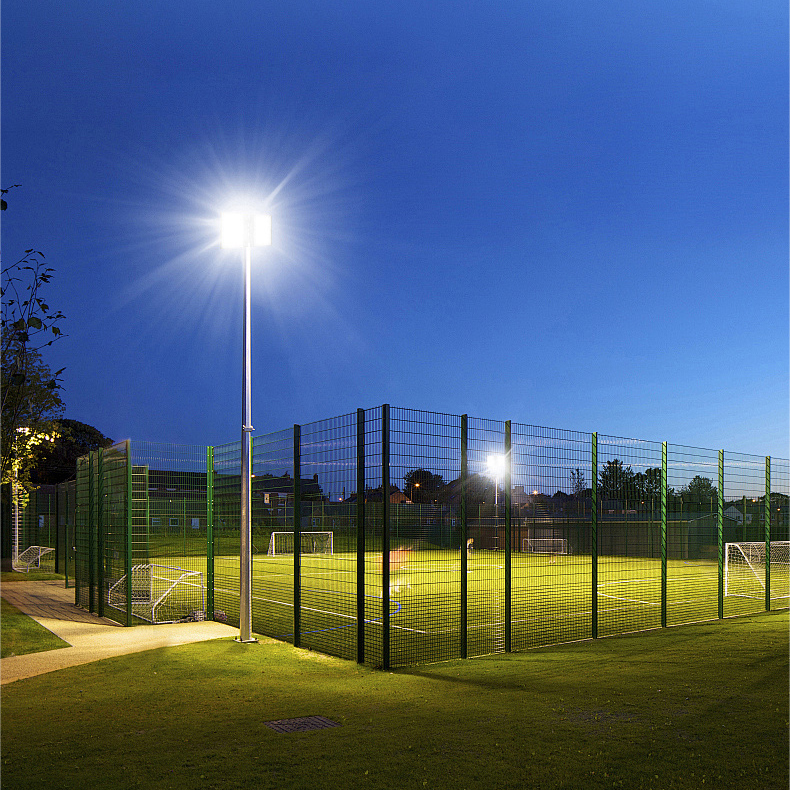

A wide range of application scenarios
Suitable for a variety of scenes, from football fields to road lighting, from tunnels to billboard lighting, LED module floodlights can provide excellent lighting effects. This versatility makes it an ideal choice for commercial and public lighting solutions, able to meet the lighting needs of different environments.
Product parameters
Model |
Module LED floodlight |
Product voltage |
AC85-310V |
Lamp bead type |
San'an LED Chip, |
Product power |
50W、100W、150W、200W、250W、300W |
Luminous Flux |
lumen 130-140 LM / W |
Lighting Drive |
Isolated Wide Voltage Range Waterproof Driver |
Power Factor |
PF>0.95 |
Electrical Surge |
4KV |
Product material |
Aluminum alloy +PC material |
Quality Assurance |
two years |
product size |
50W:70*330*130mm、100W:155*330*130mm、150W:240*330*130mm 200W:325*330*130mm、250W:410*330*130、300W:495*330*130mm |
product weight |
50W: 1.8kg、100W: 2.6kg、150W:3.62kg、200W: 4.5kg、250W: 5.2kg、300W:5.9kg |
